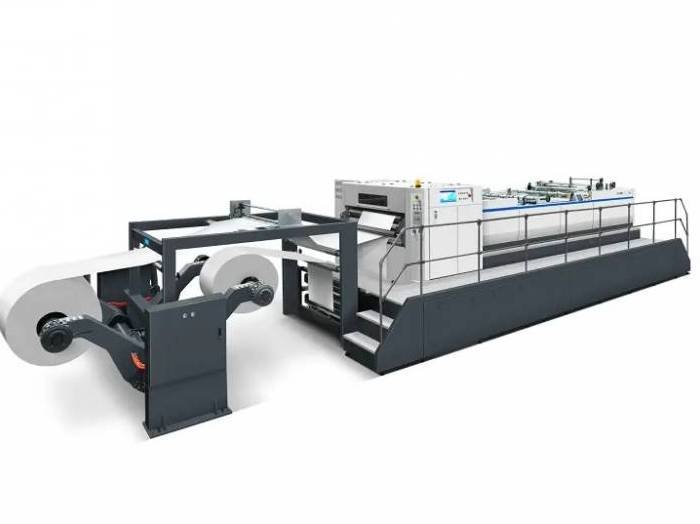

GW-D 150 Twin Knife Sheeter

Type of cutting Twin knife, Top blade and bottom blade rotary cutting
Paper weight range 150-1000 GSM
Reel stand load capacity: 2 tons
Reel diameter Max 1800mm (71 )
Cutting Width Max 1500/1700
Cut off length range Min.400-Max.1700 mm
Num. of rolls cutting 2 rolls
Cutting accuracy ±0.15mm
Max. Speed of cutting 400cuts/min
Max. Cutting speed 300m/min
Delivery height 1700mm(incl.pallet)
Voltage AC380V/220Vx50Hz 3ph
Main motor power: 64kw
Total power 98kw
